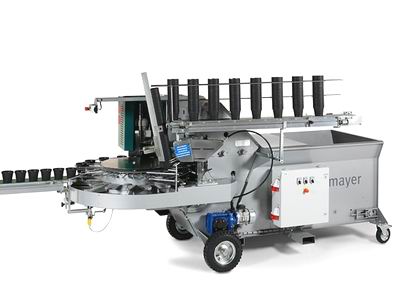

The Potting TM 1010 F



















Outstanding planting quality requires sustained favourable conditions for cultivation.The potting machine TM 1010 F creates these optimally by consistently drilling accurate,central planting holes. The exact coordination of pot position and pot transfer is fully synchronised. The high degree of mechanical precision also ensures the processingquality of subsequent stations or systems (eg. automatic planting machines).

Increased productivity is coupled with particularly convenient handling and controlswith the potting machine TM 1010 F. for example, the centrally adjustable pot holdercauses considerably reduced set-up times when adapting to different pot diameters.The electronic frequency controls for the turntable and elevator ensures precise outputcontrol and are very easy to operate via the control panel within the working area.ASdditional frequency converters for soil conveyor, drill motor and conveyor belt as wellas a PLC control are available with surcharge. The set parameters can be programmedby means of the PLC control. (Picture with additional equipement).

Thanks to an extensive assortment of accessories we are in a position to offer you customisedsolutions for special purposes.

Please send us your enquiries...



TECHNICAL DATA
Pot size(T16)	5 to 22 cm Ø
Pot size (T8)	15 to 30 cm Ø
Output	up to 4,000 pots/h
Soil hopper	1,500 litres
extended:	4,000 litres
Transport dimensions	3,60 x 1,50 x 1,80 m
Weight	880 kg
Accessories	Rotating brush, fertilizer dispenser, pot dispenser with storage belt, soil chute, trailer coupling, stainless steel shovels, special tyres, addition for orchids, raised elevator, reinforced drill motor, trailer tow bar, additional frequency converters, PLC control
